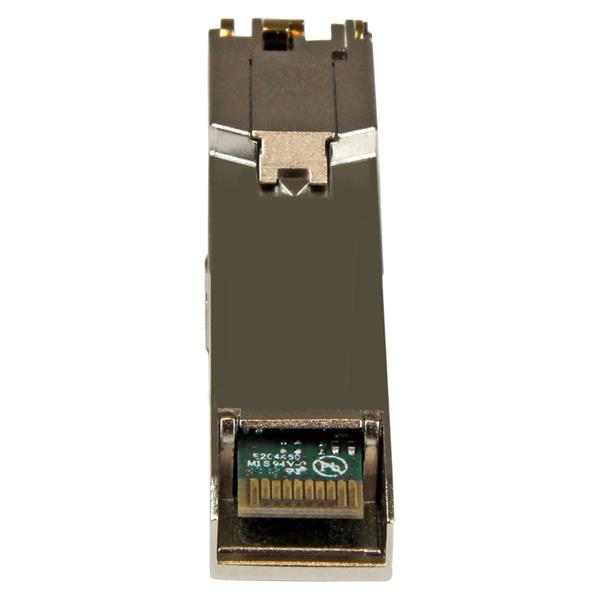

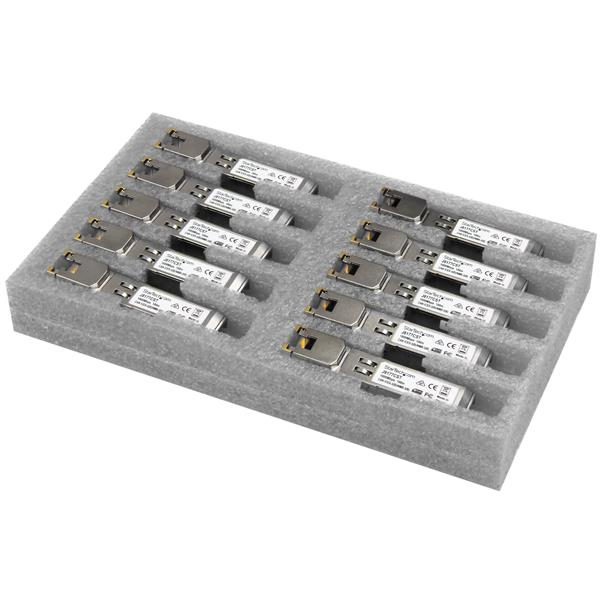

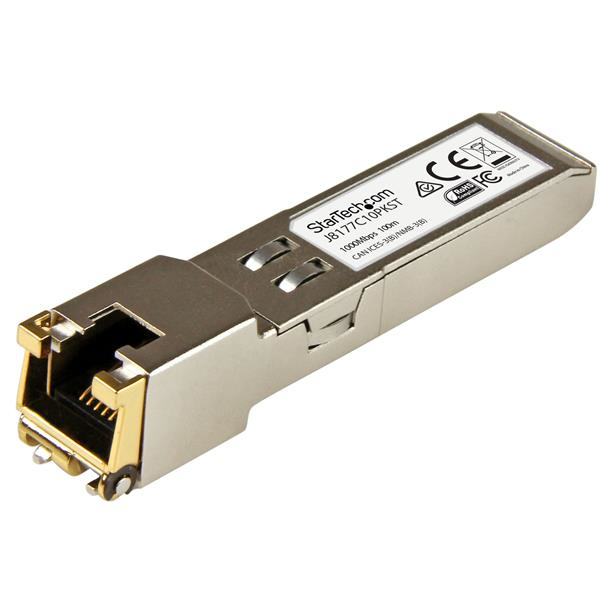

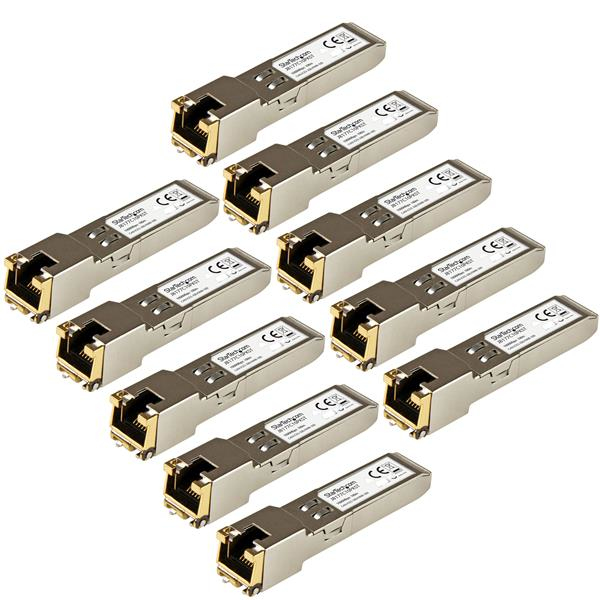

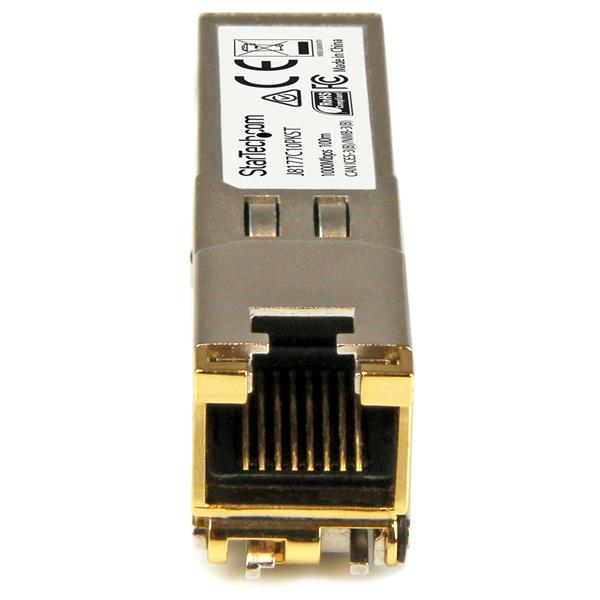

StarTech.com 10 pack HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530
Description
The J8177C10PKST is a ten-pack of our HP J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1000 Mbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 4,655,371 hours
Power Consumption: Less than 1.3 Watts
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE J8177C COMPATIBLE: 10 pack SFPs work with HPE switches like 1810, 1820, 2530, 2610, 2620 and others
- TECHNICAL SPECS: 1000BASE-T
- 1Gbps
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Fiber optic connector | MiniGBIC |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 209 mm |
| Package height | 38 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 100 m |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | No |
| Auto-negotiation | Yes |
| Fiber optic connector | MiniGBIC |
| Networking standards | IEEE 802.3ab |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 75% |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 67 mm |
| Height | 14 mm |
| Weight | 220 g |
| Package depth | 120 mm |
| Package width | 209 mm |
| Package height | 38 mm |
| Package weight | 279 g |
| Packaging data | |
| Package depth | 120 mm |
| Number of products included | 10 pc(s) |
| Package width | 209 mm |
| Package height | 38 mm |
| Package weight | 279 g |
| Certificates | |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 10 pc(s) |
| Logistics data | |
| Master (outer) case width | 34 cm |
| Master (outer) case length | 42 cm |
| Master (outer) case height | 34 cm |
| Quantity per master (outer) case | 45 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP
Maximum Data Transfer Rate
1000 Mbit/s
