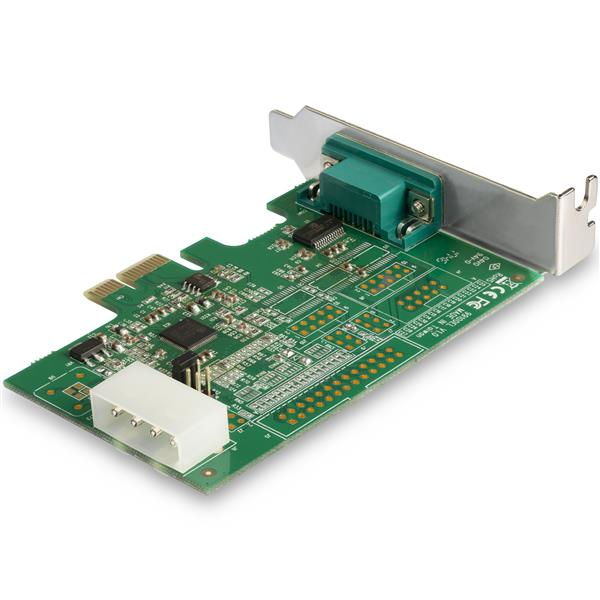

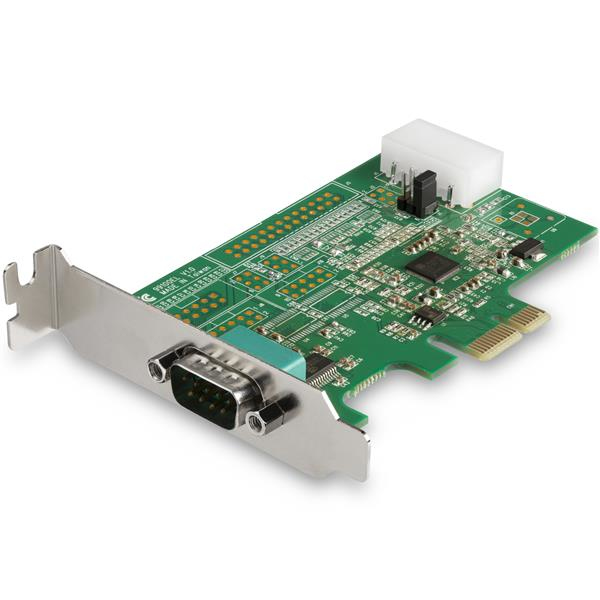

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
Description
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
128-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits

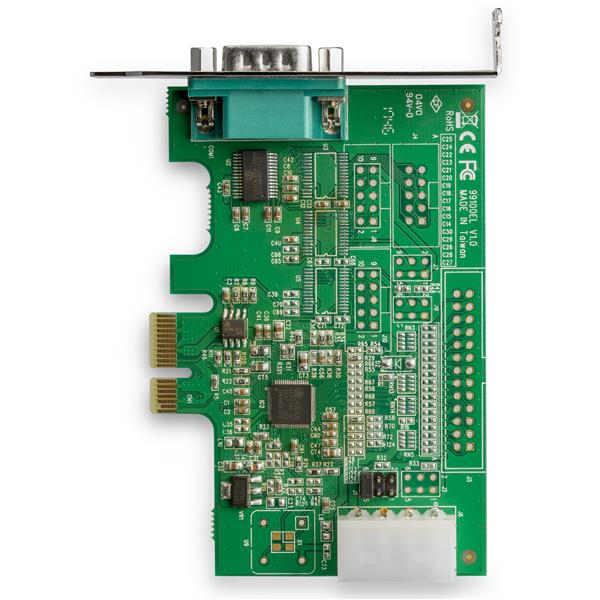

Asix AX99100 chipset
PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit

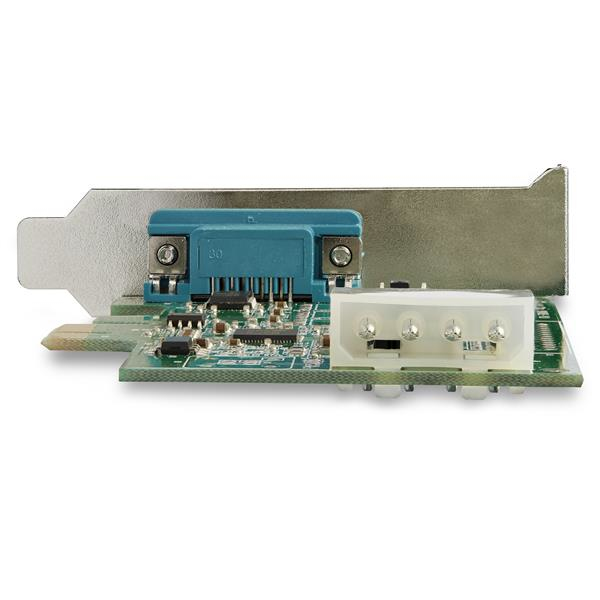

- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total

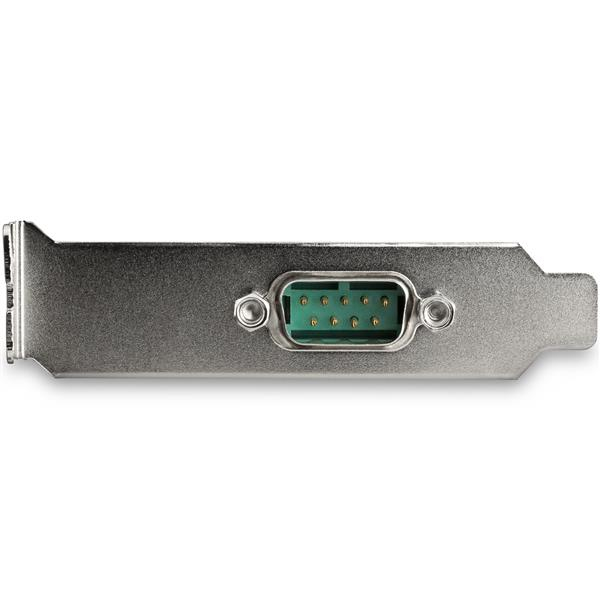

- STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 1.1 |
| Technical details | |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Sustainability certificates | RoHS |
| Performance | |
| Stop bits | 1,1.5,2 |
| Data bits | 5,6,7,8,9 |
| Baud rate | 921.4 Kbit/s |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Green |
| Certificates | |
| Certification | CE, FCC, Microsoft WHQL |
| Colour | |
| Product colour | Green |
| Design | |
| Mean time between failures (MTBF) | 277385 h |
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC, Microsoft WHQL |
| Features | |
| Stop bits | 1,1.5,2 |
| Data bits | 5,6,7,8,9 |
| Baud rate | 921.4 Kbit/s |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Parity bit | Even, Mark, N, Odd, Space |
| Flow Control type | N, RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 98 mm |
| Height | 150 mm |
| Weight | 44 g |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 112 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 112 g |
| Quantity | 1 |
| Logistics data | |
| Quantity per master (outer) case | 75 pc(s) |
| Master (outer) case width | 36 cm |
| Master (outer) case length | 68.5 cm |
| Master (outer) case height | 31.5 cm |

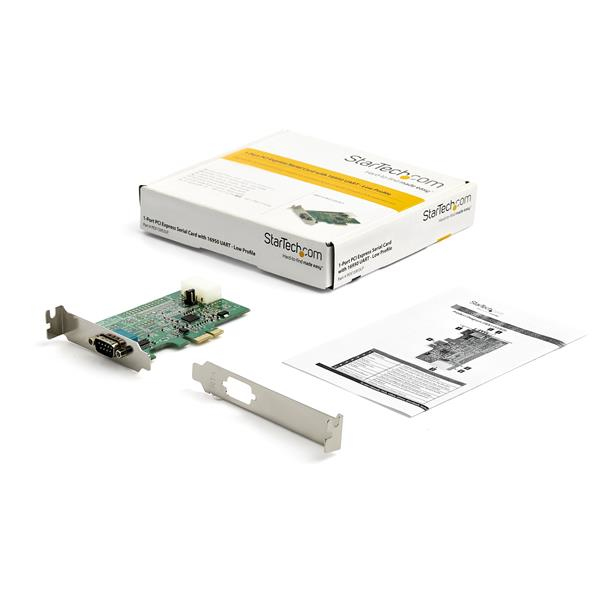

| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quantity | 1 |
| Other features | |
| Chipset | Asix AX99100 |
| Flow control support | Yes |
Specifications
UNSPSC Code
43201552
Brand
StarTech
Categories
System Components
Category
Interface Cards/Adapters
Host interface
PCIe
Internal
Y
Output interface
Serial
