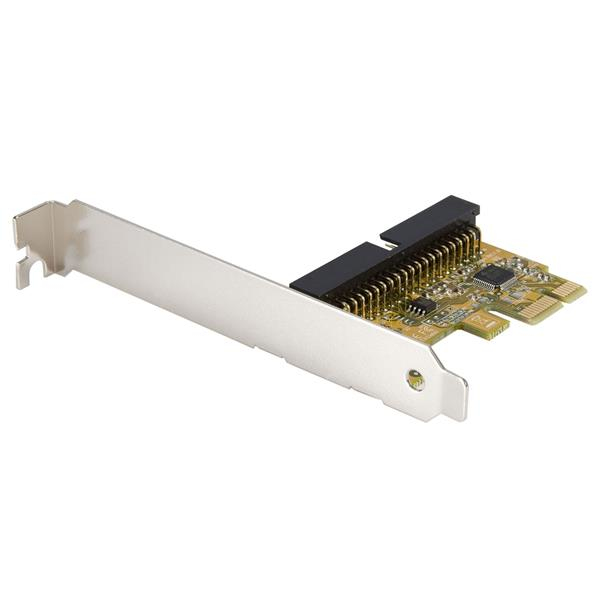

StarTech.com 1 Port PCI Express IDE Controller Adapter Card
Description
This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port.
Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel.
A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.
The StarTech.com Advantage
- 2-channels support two IDE drives simultaneously with support for UDMA 6 transfer mode
- Support for 48-bit LBA for compatibility with high capacity hard drives over 137 GB
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | IDE/ATA |
| Number of Parallel ATA connectors | 1 |
| Host interface | PCIe |
| Technical details | |
| Logical block addressing (LBA) support | 48 bit |
| Performance | |
| Logical block addressing (LBA) support | 48 bit |
| Certificates | |
| RoHS compliance | Yes |
| Design | |
| Internal | Yes |
| RoHS compliance | Yes |
| Features | |
| Logical block addressing (LBA) support | 48 bit |
| System requirements | |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 230 mm |
| Package height | 42 mm |
| Package weight | 200 g |
| Weight & dimensions | |
| Package width | 165 mm |
| Package depth | 230 mm |
| Package height | 42 mm |
| Package weight | 200 g |
Specifications
UNSPSC Code
43201552
Brand
StarTech
Categories
System Components
Category
Interface Cards/Adapters
Host interface
PCIe
Internal
Y
Output interface
IDE/ATA
StarTech.com 1 Port PCI Express IDE Controller Adapter Card
