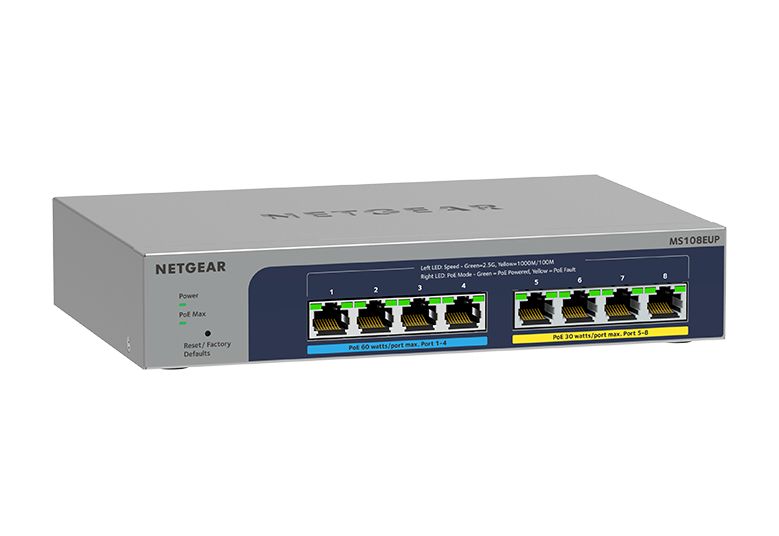

NETGEAR MS108EUP Unmanaged L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
Description
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Unmanaged |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 100BASE-T,1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 100BASE-T,1000BASE-T |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 64 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Data transmission | |
| Number of multicast groups filtered | 128 |
| Number of VLANs | 64 |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Stackable | No |
| Mean time between failures (MTBF) | 373644 h |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Mean time between failures (MTBF) | 373644 h |
| Housing material | Metal |
| Rack mounting | No |
| Security | |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ),Weighted Round Robin (WRR) |
| Password protection | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Multicast support | Yes |
| Certificates | |
| Certification | CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
Specifications
UNSPSC Code
43222612
Basic switching RJ-45 Ethernet ports quantity
7 to 8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Brand
Netgear
Categories
Networking
Category
Network Switches
Power over Ethernet (PoE)
Y
Rack mounting
N
Stackable
N
Switch Type
Unmanaged
