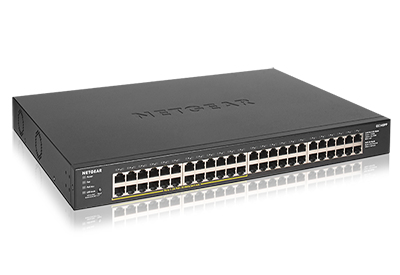

Netgear GS348PP Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
Description
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.
Extended Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348)
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 570972 h |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 570972 h |
| Housing material | Metal |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Network | |
| Cable length detection | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Jumbo frames | 12288 |
| Latency (1 Gbps) | 4 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 96 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 1.448 Mpps |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Certificates | |
| Certification | CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Product colour | Black |
| LED indicators | Activity,Link,PoE,Power,Speed |
| Housing material | Metal |
| Certification | CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Activity,Link,PoE,Power,Speed |
| Power | |
| Power consumption (max) | 410 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1402.2 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.56 kg |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
Specifications
UNSPSC Code
43222612
Basic switching RJ-45 Ethernet ports quantity
46 to 48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Brand
Netgear
Categories
Networking
Category
Network Switches
Power over Ethernet (PoE)
Y
Rack mounting
Y
Switch Type
Unmanaged
