Manhattan USB-C 9-Port Hub/Dock/Converter, USB-C to HDMI, USB-C(inc PD), Mini DisplayPort, VGA, 3x USB-A, Gigabit RJ45 and 3.5mm Audio with SD Card Reader, 5 Gbps (USB 3.2 Gen 1); HDMI Ultra HD,1080p@60Hz or 3840x2160p@30Hz(4K), VGA HD 1080p video; Male t
Description
_x000D_

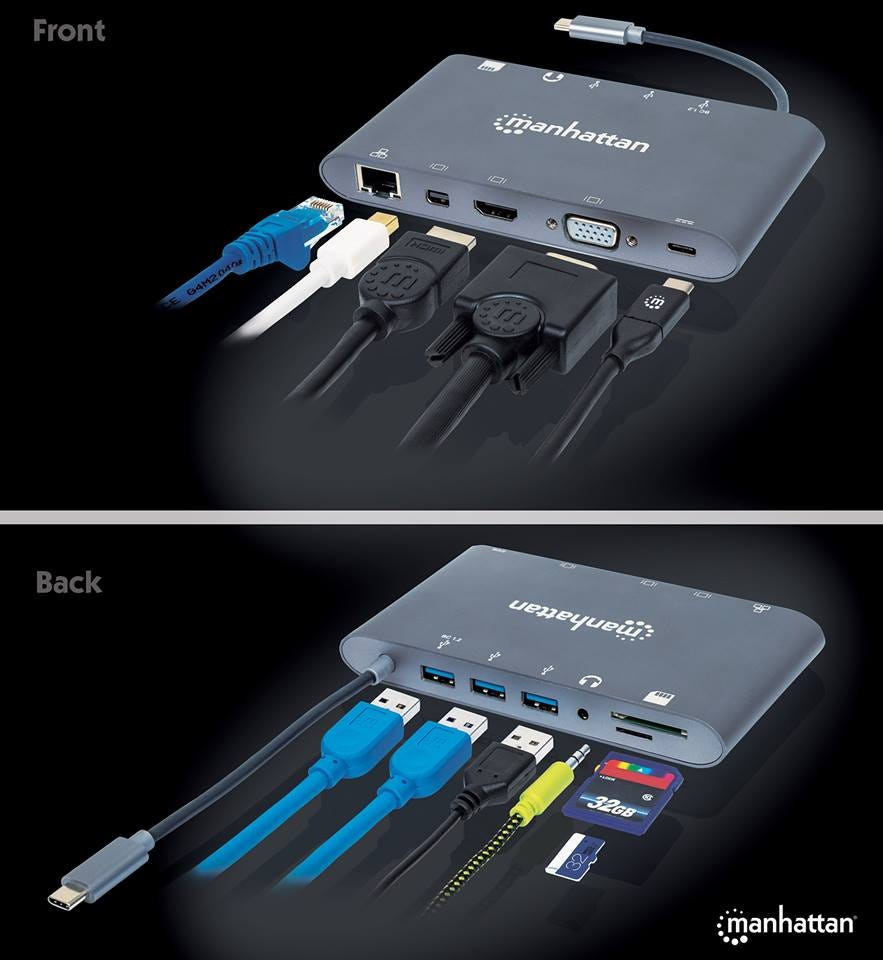

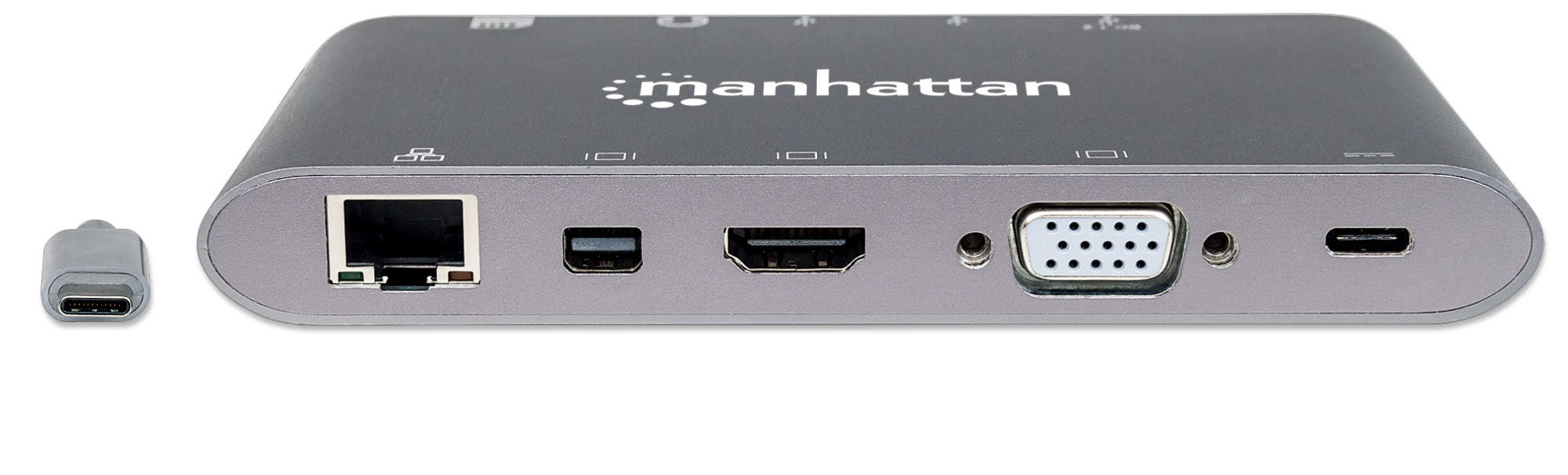

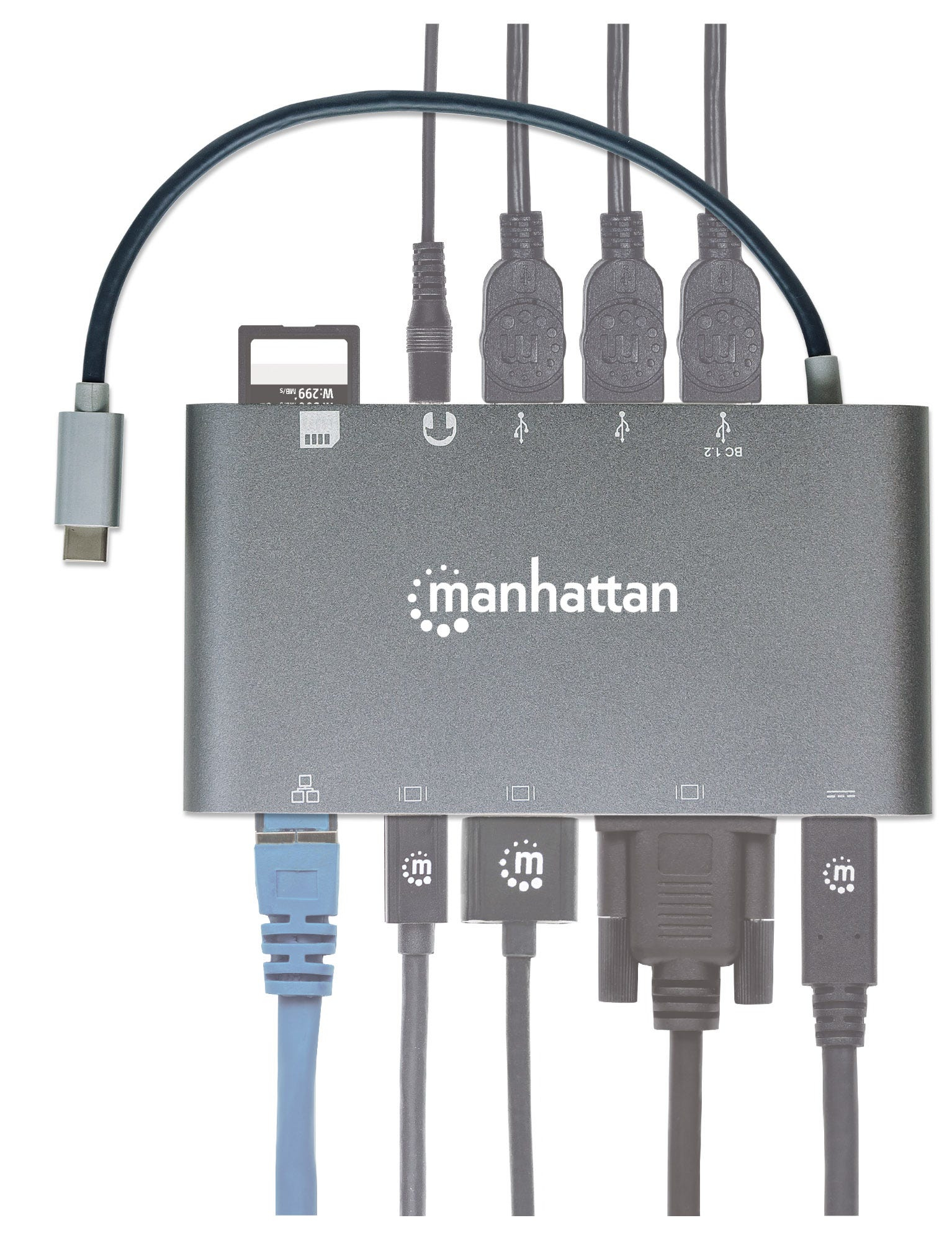

The Manhattan SuperSpeed USB-C to 7-in-1 Docking Station establishes a fast, simple and convenient link between newer USB Type-C-equipped media sources (computers, tablets, Smartphones, etc.) and an existing HDMI/Mini DP/VGA display (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more, with the integrated USB-A ports, Gigabit network connection, 3.5 mm Stereo and SD and Micro SD card slot, all while charging your device through the USB-C port._x000D_
_x000D_
The Manhattan SuperSpeed USB-C to 7-in-1 Docking Station is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your Type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Hub interfaces | HDMI, Mini DisplayPort, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, VGA |
| DC-in jack | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, SD, SDHC |
| Card reader integrated | Yes |
| Maximum resolution (HDMI) | 1920 x 1200 pixels |
| Card reader slot | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Cable length | 0.2 m |
| Features | |
| Plug and Play | Yes |
| Product colour | Silver |
| Certification | HDCP 1.4 CE FCC RoHS2 WEEE |
| Cable length | 0.2 m |
| Housing material | Aluminium |
| AWG wire size | 34 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Power | |
| Input current | 3 A |
| Power supply | 60 W |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Silver |
| Performance | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, SD, SDHC |
| Certification | HDCP 1.4 CE FCC RoHS2 WEEE |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Plug and Play | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, SD, SDHC |
| Card reader integrated | Yes |
| Weight & dimensions | |
| Weight | 200 g |
| Width | 75 mm |
| Depth | 137 mm |
| Height | 17 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick installation guide | Yes |
| Design | |
| Product colour | Silver |
| Certification | HDCP 1.4 CE FCC RoHS2 WEEE |
| Cable length | 0.2 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | HDCP 1.4 CE FCC RoHS2 WEEE |
Specifications
UNSPSC Code
43211603
Brand
Manhattan
Categories
Notebook Parts & Accessories
Category
Notebook Docks & Port Replicators
Product Colour
Silver
