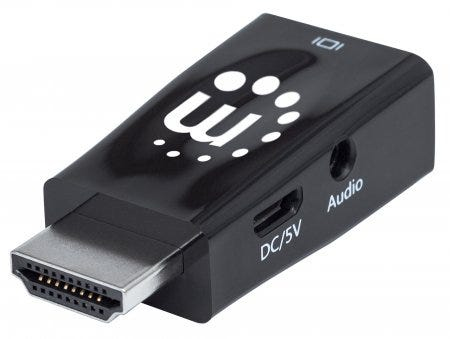

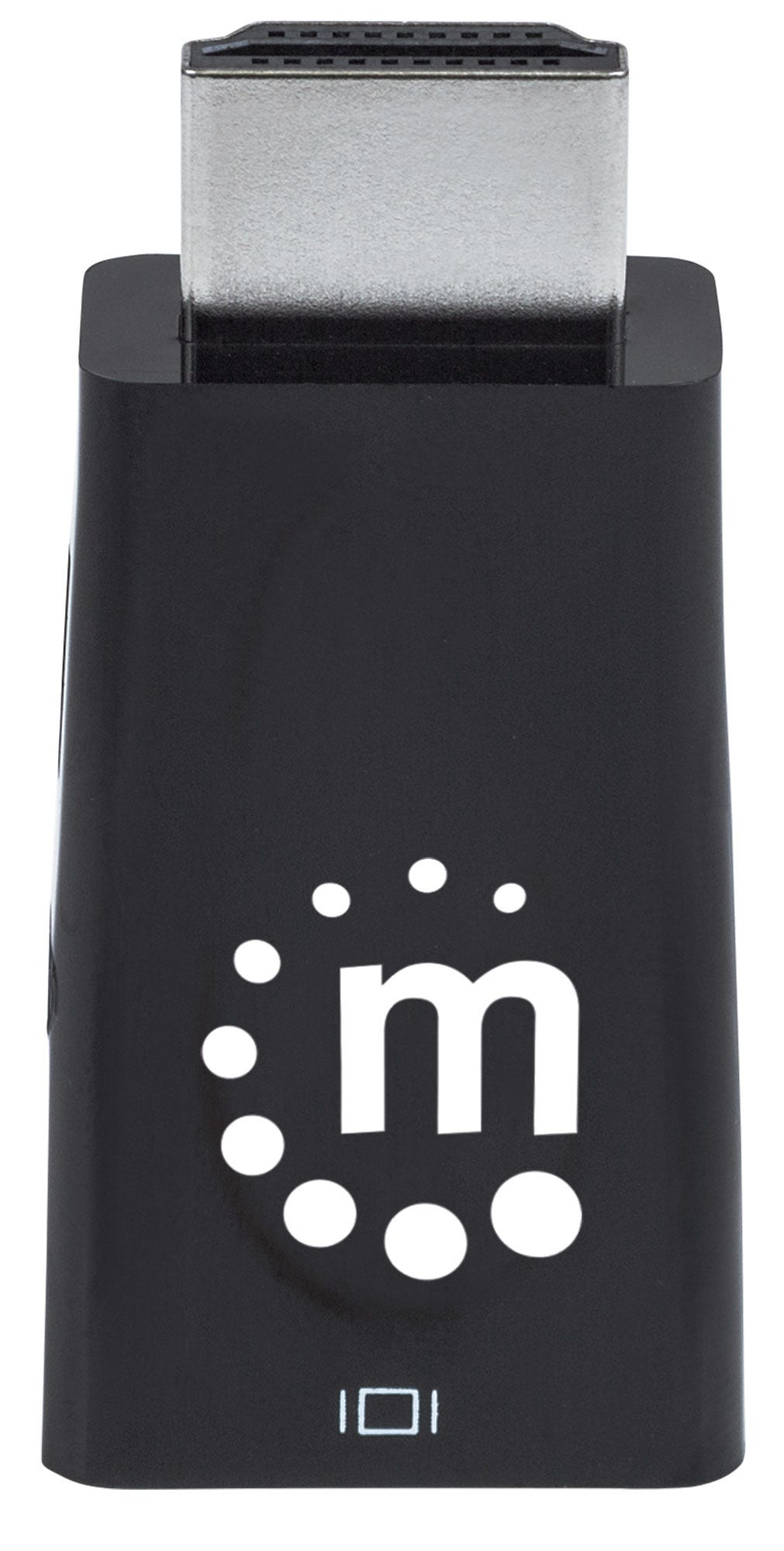

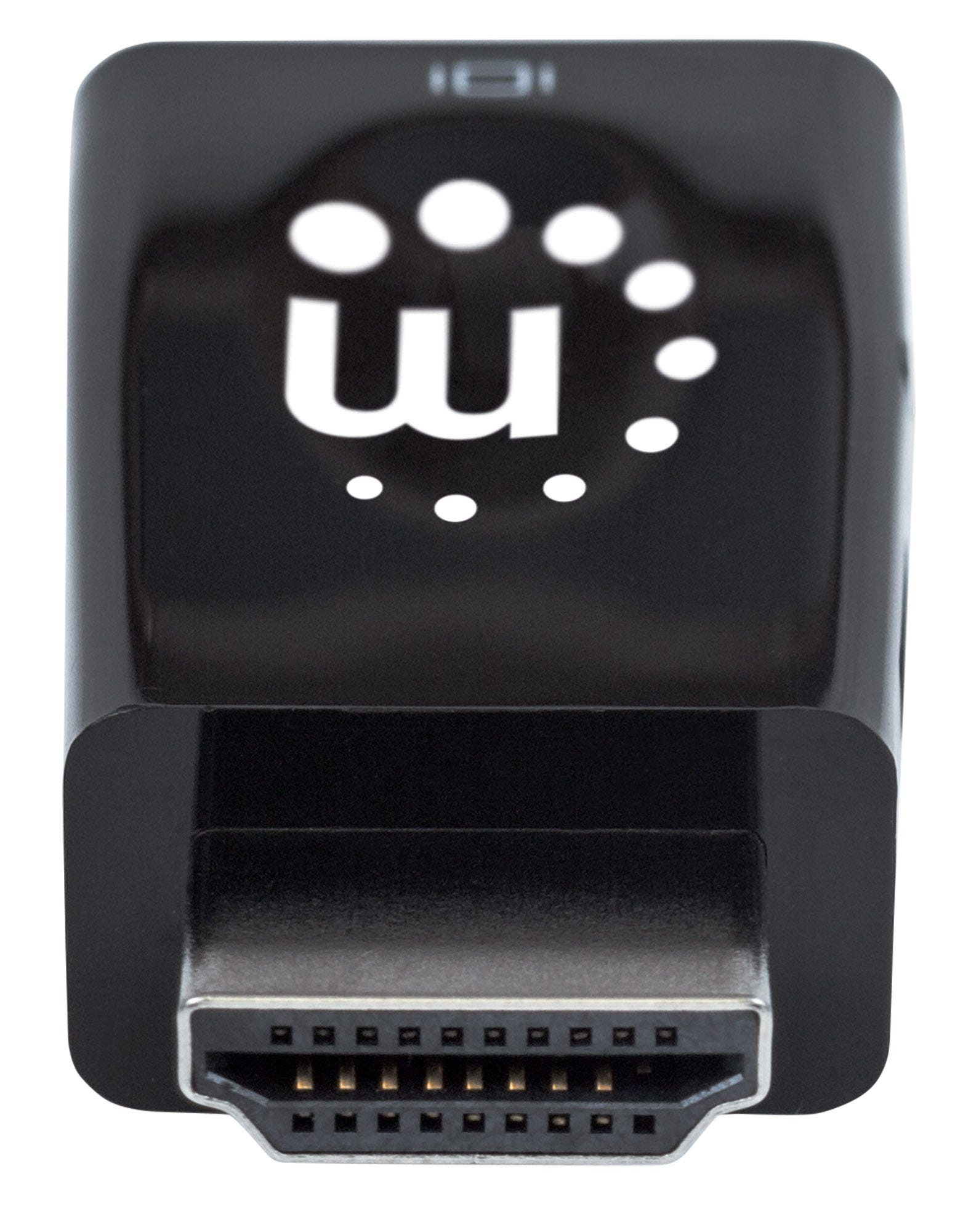

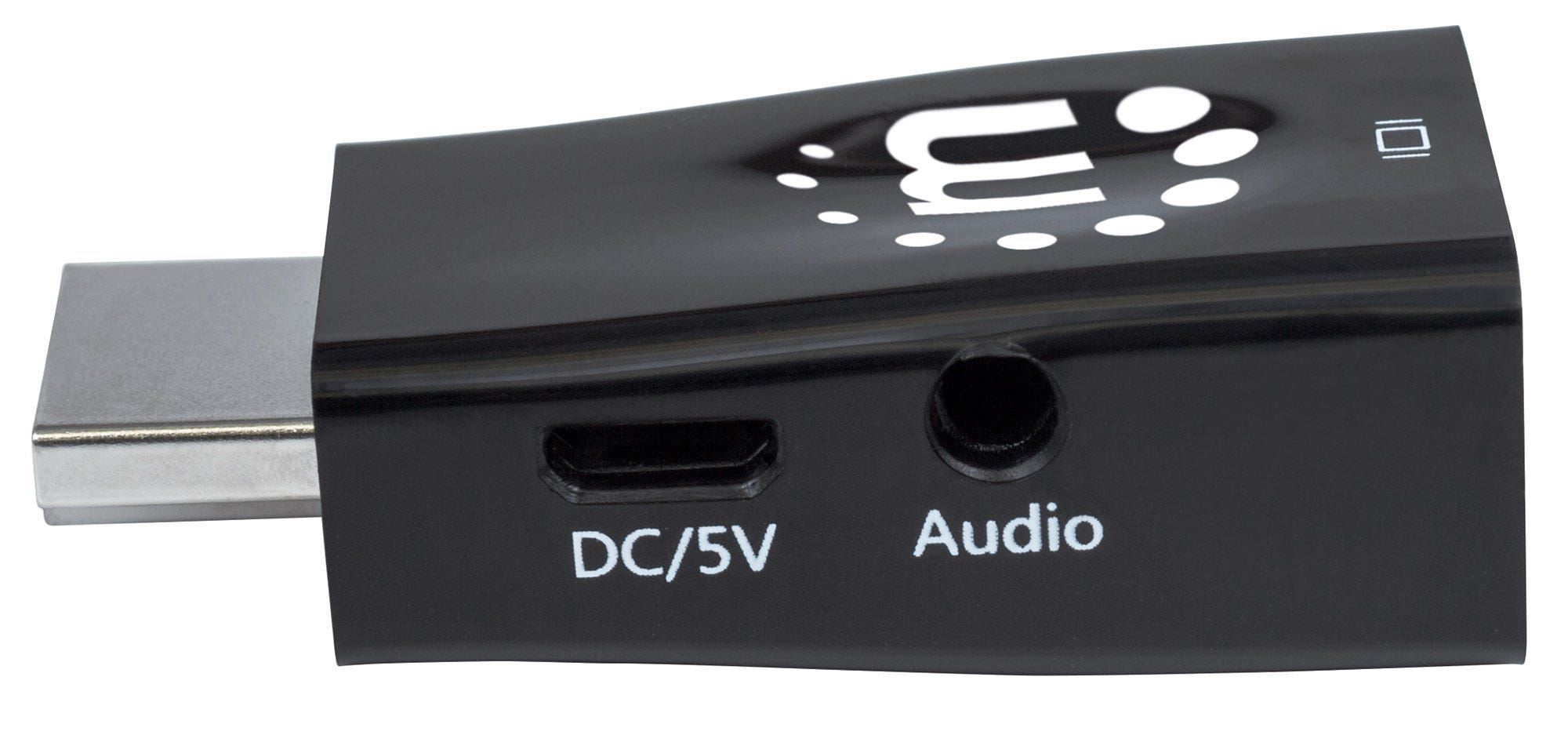

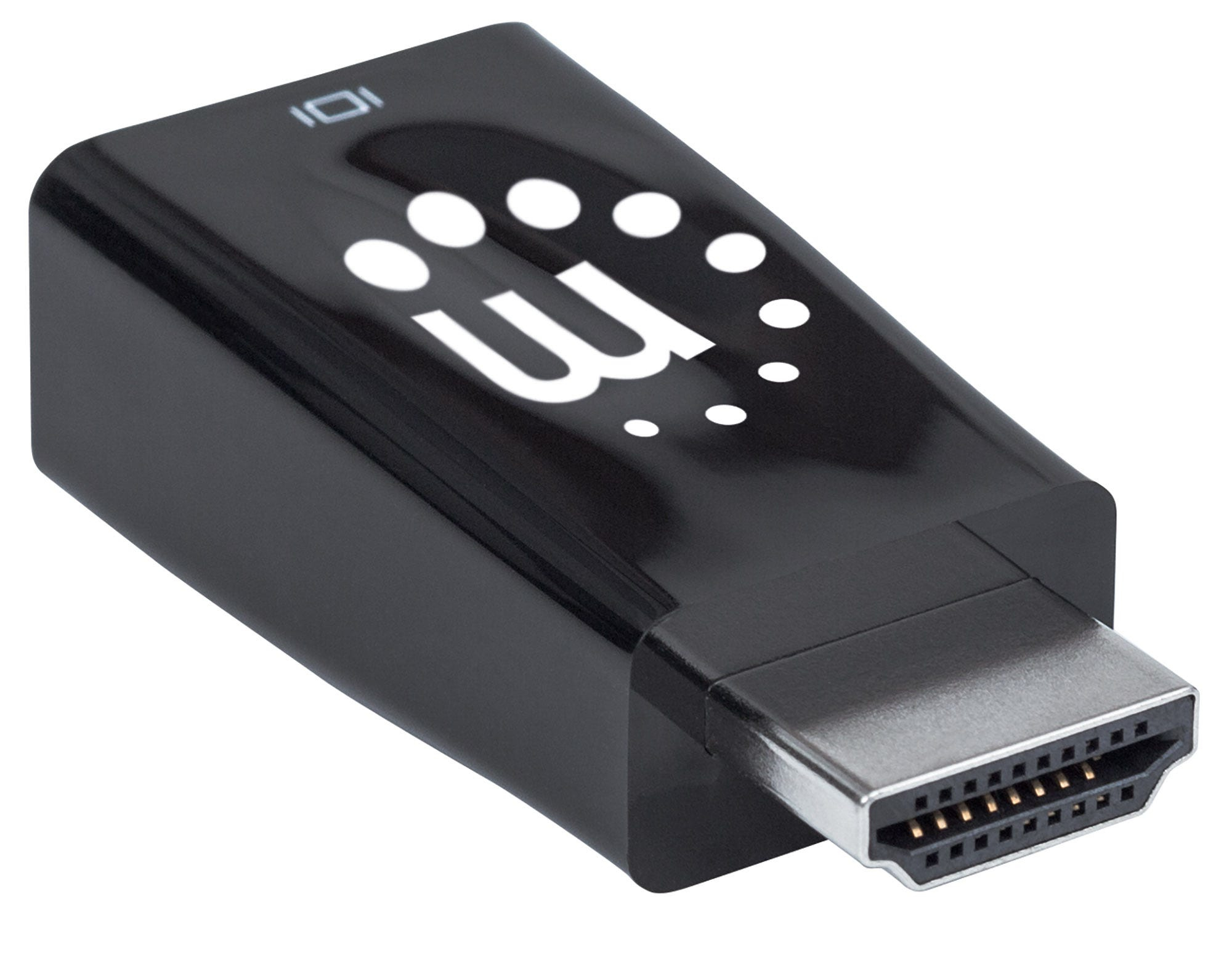

Manhattan HDMI to VGA (with Audio) Converter, 1080p, Male to Female, Optional USB Micro-USB Power Port, Black, Polybag
Description
The Manhattan HDMI to VGA Micro Converter establishes a fast, simple and convenient link between a newer HDMI-equipped desktop, notebook computer or other media source and an existing VGA monitor, projector or other display device. The Manhattan HDMI to VGA Micro Converter is easy and quick to install and requires no complicated configuration or setup. This converter helps extend the service life of legacy VGA display equipment so you can get the most out of your investment and fully realise its value. The Manhattan HDMI to VGA Micro Converter offers a low-power, cost-effective and reliable solution so users can transition to HDMI bandwidths, resolutions, Deep colour and more without the expense of upgrading to newer and costly monitors and projectors. Its integrated, all-in-one design helps achieve a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly. Its 3.5 mm stereo port allows the converter to transmit audio to an external audio device, and its Micro-USB port allows for additional power if required.
| Technical details | |
|---|---|
| HDCP | Yes |
| Colour depth | 10 bit |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Output interface | VGA |
| Host interface | VGA (D-Sub) + 3.5 mm (1/8") |
| Bandwidth | 6.75 Gbit/s |
| Colour | |
| Product colour | Black |
| Video | |
| HDCP | Yes |
| Colour depth | 10 bit |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Bandwidth | 6.75 Gbit/s |
| Other features | |
| Product colour | Black |
| Certification | UL20276 CE ROHS2 HDMI 1.3 |
| RoHS compliance | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Ports & interfaces | |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm connector | Yes |
| Output interface | VGA |
| Host interface | VGA (D-Sub) + 3.5 mm (1/8") |
| Certificates | |
| Certification | UL20276 CE ROHS2 HDMI 1.3 |
| RoHS compliance | Yes |
| Power | |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 40 mm |
| Height | 15 mm |
| Weight | 90 g |
Specifications
UNSPSC Code
52160000
Brand
Manhattan
Categories
Computer, AV & Power Cables
Category
Cable Interface/Gender Adapters
