Kingston

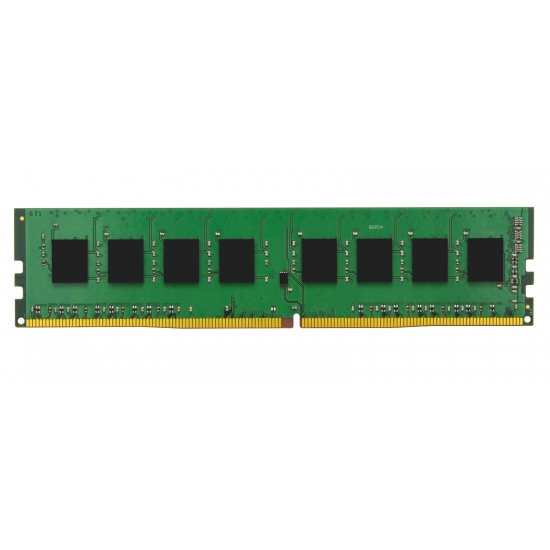

Kingston Technology ValueRAM 8GB DDR4 2666MHz memory module 1 x 8 GB

Category Memory Modules
KVR26N19S8/8
Kingston

Kingston Technology ValueRAM 8GB DDR4 2666MHz memory module 1 x 8 GB

1 Location: 62 In Stock
Product Code: KVR26N19S8/8
Category Memory Modules

Description

This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: - Power Supply: VDD=1.2V Typical - VDDQ = 1.2V Typical - VPP - 2.5V Typical - VDDSPD=2.2V to 3.6V - Nominal and dynamic on-die termination (ODT) for - data, strobe, and mask signals - Low-power auto self refresh (LPASR) - Data bus inversion (DBI) for data bus - On-die VREFDQ generation and calibration - Single-rank - On-board I2 serial presence-detect (SPD) EEPROM - 16 internal banks; 4 groups of 4 banks each - Fixed burst chop (BC) of 4 and burst length (BL) of 8 - via the mode register set (MRS) - Selectable BC4 or BL8 on-the-fly (OTF) - Fly-by topology - Terminated control command and address bus - PCB: Height 1.23” (31.25mm) - RoHS Compliant and Halogen-Free
Power
Memory voltage1.2 V
Design
Product colourGreen
Cooling typeHeatsink
Technical details
Product colourGreen
Cooling typeHeatsink
Sustainability certificatesRoHS
Doesn't containHalogen
Memory
Buffered memory typeUnregistered (unbuffered)
Memory layout (modules x size)1 x 8 GB
Internal memory8 GB
Component forPC/server
Memory form factor288-pin DIMM
CAS latency19
Memory voltage1.2 V
Lead platingGold
Module configuration1024M x 64
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
SPD profileYes
Memory ranking1
ECCNo
Memory clock speed2666 MHz
Internal memory typeDDR4
Features
Buffered memory typeUnregistered (unbuffered)
Product colourGreen
Memory layout (modules x size)1 x 8 GB
Internal memory8 GB
Component forPC/server
Memory form factor288-pin DIMM
CAS latency19
Memory voltage1.2 V
Lead platingGold
Module configuration1024M x 64
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
SPD profileYes
Cooling typeHeatsink
Memory ranking1
ECCNo
Memory clock speed2666 MHz
Internal memory typeDDR4
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C
Weight & dimensions
Width133.3 mm
Height31.2 mm
UNSPSC Code

43201402

Brand

Kingston

Categories

System Components

Category

Memory Modules

Component for

PC/server

ECC

N

Internal Memory

8GB to 12GB

Internal memory type

DDR4

Memory clock speed

2600MHz to 2666MHz

Memory form factor

288-pin DIMM

Memory layout (modules x size)

1 x 8 GB
