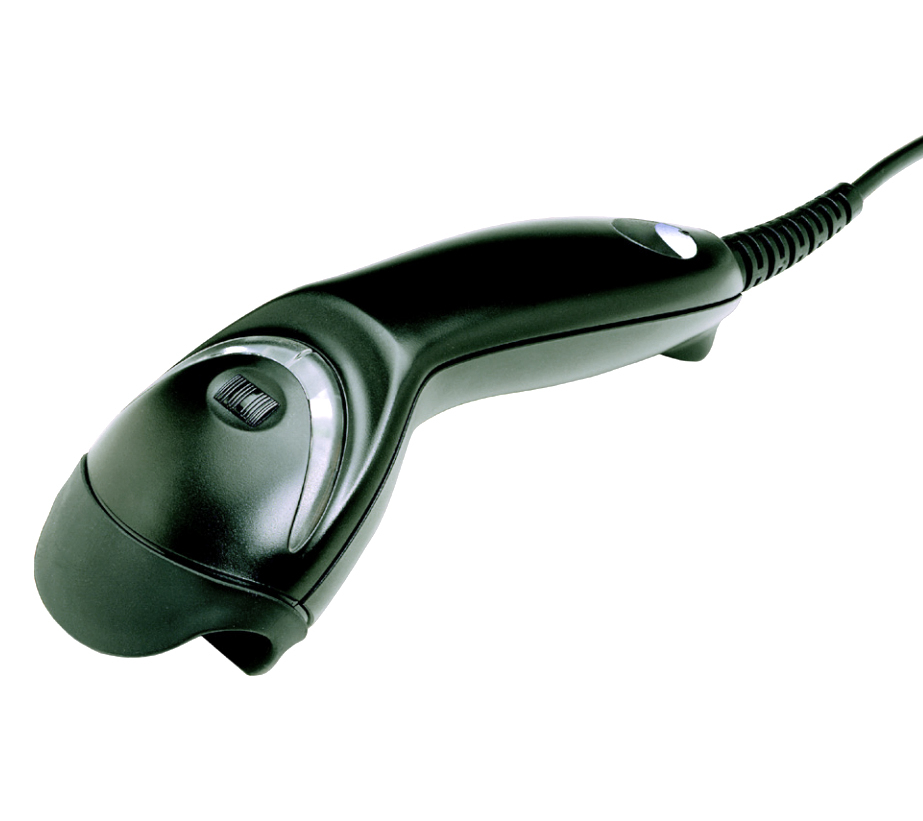

Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black
Description
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Working distance | 150 cm |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 52° |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 42 reads/s |
| Pitch reading angle | 0 - 68° |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2.1 m |
| Standard interfaces | RS-232 |
| Performance | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Power | |
| Power consumption | 675 mA |
| Power source type | DC |
| Power consumption (typical) | 0.672 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Weight | 100 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 4842 lx |
Specifications
UNSPSC Code
43211701
2D (matrix & stacked) barcodes supported
Not Supported
Brand
Honeywell
Categories
Printers & Scanners
Category
Barcode Scanner
Connectivity technology
Wired
Power source type
DC
Product Colour
Black
Scanner type
1D
Sensor type
Laser
Standard interfaces
RS-232
Type
Handheld bar code reader
Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black
