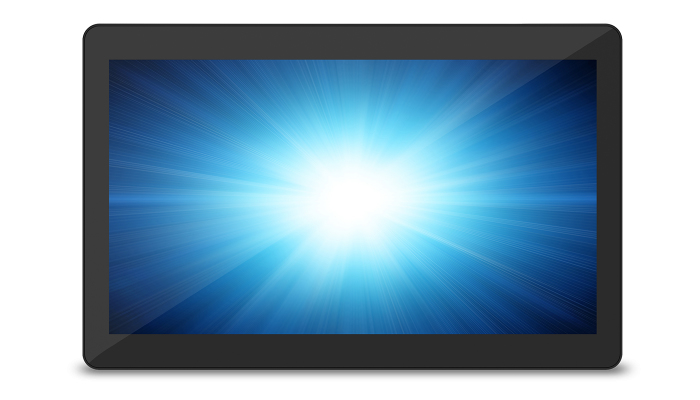

Elo Touch Solution I-Series E692244 All-in-One PC/workstation 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen 8th gen Intel® Core™ i5 8 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Black All-in-One tablet PC Windows 10
Description
| Display | |
|---|---|
| Detachable display | No |
| Screen shape | Flat |
| HD type | Full HD |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| LED backlight | Yes |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| 3D | No |
| Native aspect ratio | 16:9 |
| Response time | 25 ms |
| Processor | |
| Stepping | U0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 35 W |
| Processor code | SR3XD |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 25 W |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 1.6 GHz |
| Conflict-Free processor | Yes |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor family | 8th gen Intel® Core™ i5 |
| Processor model | i5-8500T |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor cache | 9 MB |
| System bus rate | 8 GT/s |
| 64-bit computing | Yes |
| Motherboard chipset | Intel Q370 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Hard drive | |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Storage | |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Card reader integrated | No |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 128 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter ID | 0x3E92 |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Camera | |
| Built-in camera | No |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Processor special features | |
| Processor code | SR3XD |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal solution specification | PCG 2015A |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 129941 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Technical details | |
| Product type | All-in-One tablet PC |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Product colour | Black |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Performance | |
| Product type | All-in-One tablet PC |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | Windows 10 |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Multimedia | |
| Built-in camera | No |
| Pen | |
| Pen included | No |
| Weight & dimensions | |
| Package width | 462 mm |
| Package depth | 216 mm |
| Package height | 346 mm |
| Package weight | 4.3 kg |
| Packaging data | |
| Package width | 462 mm |
| Package depth | 216 mm |
| Package height | 346 mm |
| Package weight | 4.3 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Detachable display | No |
| On-board graphics adapter | Yes |
| SSD capacity | 128 GB |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Number of SSDs installed | 1 |
| 3D | No |
