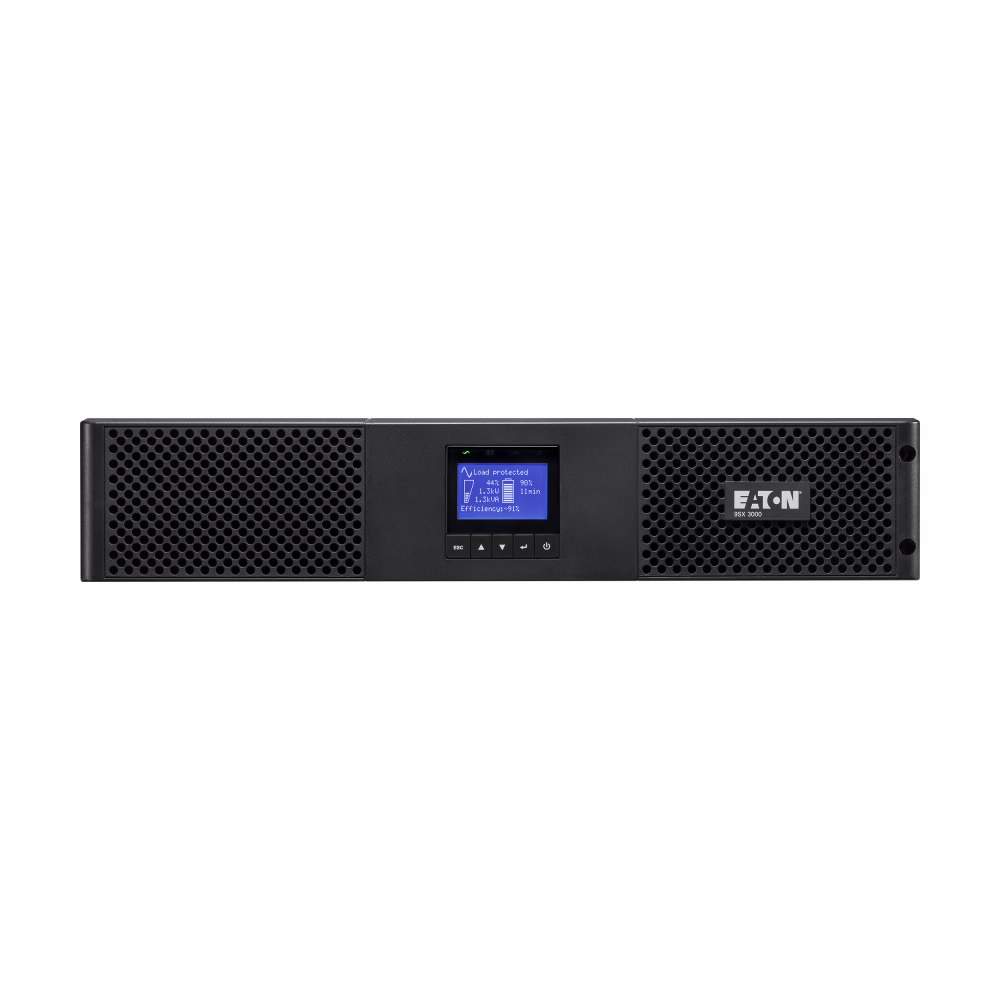

Eaton 9SX2000IRBS uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 8 AC outlet(s)
Description
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 1800 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92% |
| Power factor | 0.9 |
| Output power capacity | 2 kVA |
| Efficiency (ECO mode) | 98% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 45 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 1800 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Noise level | 45 dB |
| Output power capacity | 2 kVA |
| Efficiency (ECO mode) | 98% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C8 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 6 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 4.5 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Product colour | Black, Silver |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Storage relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Weight | 26.9 kg |
| Width | 580 mm |
| Height | 240 mm |
| Depth | 780 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Certificates | |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
Specifications
UNSPSC Code
39121011
Brand
Eaton
Categories
Batteries & Electrical Accessories
Category
Uninterruptible Power Supplies (UPSs)
Form Factor
Rackmount
Output Power
1500W to 2000W
UPS topology
Double-conversion (Online)
