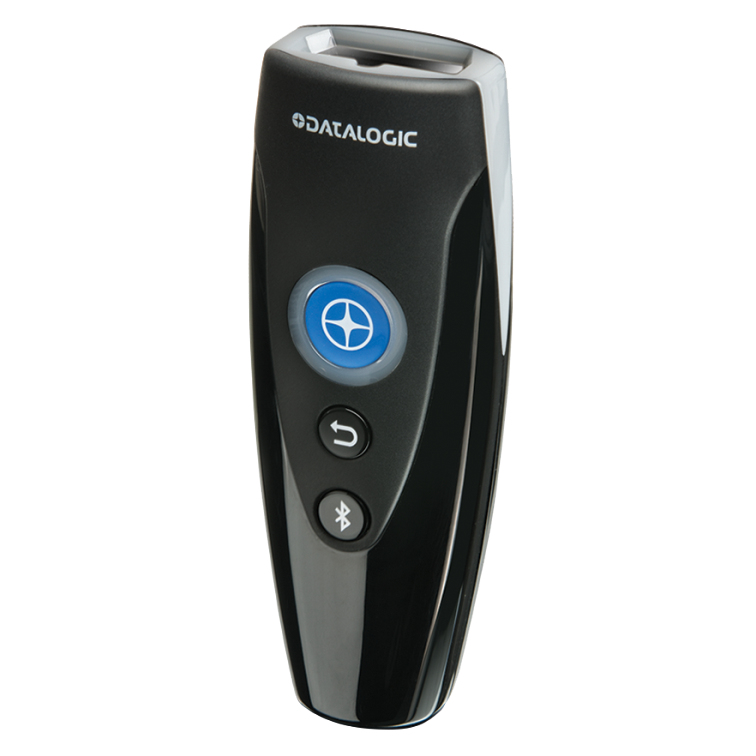

Datalogic RIDA DBT6400 Handheld bar code reader 1D/2D Black
Description
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,RM4SCC / KIX,U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Small Aztec Code |
| Yaw reading angle | -60 - 60° |
| Wavelength | 650 nm |
| Tilt reading angle | -180 - 180° |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Ports & interfaces | |
| Wireless range | 25 m |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Operating frequency | 2400 MHz |
| Standard interfaces | Bluetooth, USB |
| Performance | |
| Protection features | Shock resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP50 |
| Product colour | Black |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP50 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Battery life | 5 h |
| Charging time | 2.5 h |
| Battery voltage | 5 V |
| Number of reads per charge | 3000 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 700 mAh |
| Weight & dimensions | |
| Width | 112.5 mm |
| Depth | 42.3 mm |
| Height | 27.5 mm |
| Weight | 85 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP50 |
| Product colour | Black |
| Sustainability certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | USB |
Specifications
UNSPSC Code
43211701
Brand
Datalogic
Categories
Printers & Scanners
Category
Barcode Scanner
Connectivity technology
Wired & Wireless
Power source type
Battery
Product Colour
Black
Scanner type
1D/2D
Type
Handheld bar code reader
