Own Brand

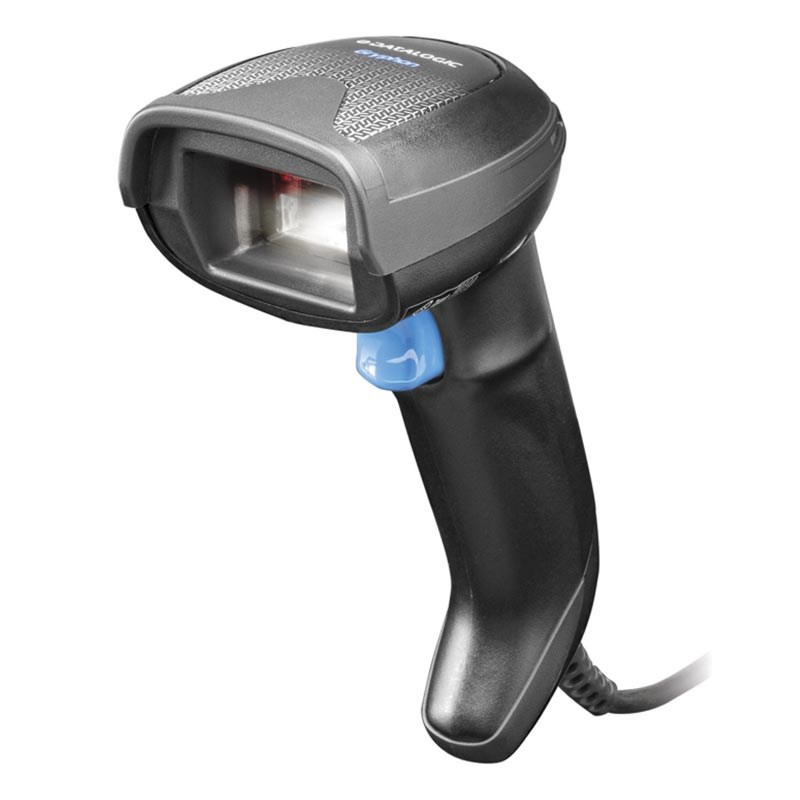

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

Category Barcode Scanner
GD4590-BK-B
Own Brand

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

1 Location: 16 In Stock
Product Code: GD4590-BK-B
Category Barcode Scanner

Description

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications. The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance. The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options. Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment. The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedCode 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Motion tolerance (cm/s)88.9
Yaw reading angle-65 - 65°
Wavelength650 nm
Tilt reading angle0 - 360°
Scanner type1D/2D
Pitch reading angle-65 - 65°
Light levels (direct sunlight)0 - 100000 lx
Optical sensor resolution (W x H)1280 x 800 pixels
Ports & interfaces
Connectivity technologyWired
Standard interfacesRS-232, USB, Keyboard wedge
Performance
Protection featuresShock resistant
Built-in displayNo
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Image formats supportedBMP,JPEG
Light levels (direct sunlight)0 - 100000 lx
Design
TypeHandheld bar code reader
Protection featuresShock resistant
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Power
Power consumption300 mA
Power source typeDC
Input voltage4.5 - 14 V
Weight & dimensions
Width68 mm
Depth109 mm
Height166 mm
Weight161 g
Technical details
TypeHandheld bar code reader
Protection featuresShock resistant
Built-in displayNo
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Sustainability certificatesRoHS
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Light levels (direct sunlight)0 - 100000 lx
UNSPSC Code

43211701

Brand

Datalogic

Categories

Printers & Scanners

Category

Barcode Scanner

Connectivity technology

Wired

Power source type

DC

Product Colour

Black

Scanner type

1D/2D

Type

Handheld bar code reader

Starting from
€289.48 Pack of 1
/
incl. VAT €356.06
- +
Add to quick list
Compare
Order in the next
Get delivery by see exceptions*
Need more delivery information? Chat
Own Brand

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

Category Barcode Scanner
GD4590-BK-B
Own Brand

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

1 Location: 16 In Stock
Product Code: GD4590-BK-B
Category Barcode Scanner
Starting from
€289.48 Pack of 1
/
incl. VAT €356.06
- +
Add to quick list
Compare
Order in the next
Get delivery by see exceptions*
Need more delivery information? Chat

Description

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications. The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance. The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options. Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment. The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedCode 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Motion tolerance (cm/s)88.9
Yaw reading angle-65 - 65°
Wavelength650 nm
Tilt reading angle0 - 360°
Scanner type1D/2D
Pitch reading angle-65 - 65°
Light levels (direct sunlight)0 - 100000 lx
Optical sensor resolution (W x H)1280 x 800 pixels
Ports & interfaces
Connectivity technologyWired
Standard interfacesRS-232, USB, Keyboard wedge
Performance
Protection featuresShock resistant
Built-in displayNo
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Image formats supportedBMP,JPEG
Light levels (direct sunlight)0 - 100000 lx
Design
TypeHandheld bar code reader
Protection featuresShock resistant
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Power
Power consumption300 mA
Power source typeDC
Input voltage4.5 - 14 V
Weight & dimensions
Width68 mm
Depth109 mm
Height166 mm
Weight161 g
Technical details
TypeHandheld bar code reader
Protection featuresShock resistant
Built-in displayNo
International Protection (IP) codeIP52
Product colourBlack
CertificationIEC 60825 Class 2
Sustainability certificatesRoHS
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Light levels (direct sunlight)0 - 100000 lx
UNSPSC Code

43211701

Brand

Datalogic

Categories

Printers & Scanners

Category

Barcode Scanner

Connectivity technology

Wired

Power source type

DC

Product Colour

Black

Scanner type

1D/2D

Type

Handheld bar code reader
