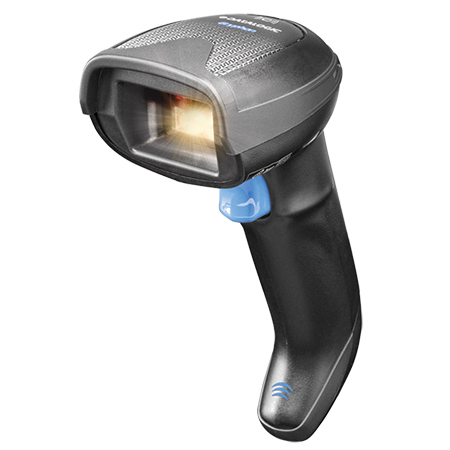

Datalogic Gryphon I GBT4500 Handheld bar code reader 1D/2D Laser Black

Name: Datalogic Gryphon I GBT4500 Handheld bar code reader 1D/2D Laser Black
Brand: Datalogic
SKU: GBT4500-BK-WLC
Price: 538.54 EUR
Availability: OutOfStock

Product Code: GBT4500-BK-WLC

Category Barcode Scanner

Starting from

€437.84 Pack of 1

incl. VAT €538.54

- +

selection not available, try a different combination

Description

The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance. The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking. Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging. The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model). One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance. The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Code 39,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417,U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Yaw reading angle	-65 - 65°
Wavelength	650 nm
Tilt reading angle	0 - 360°
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-65 - 65°
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Wireless range	100 m
Connectivity technology	Wireless
Bluetooth version	4.0
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Performance
International Protection (IP) code	IP52
Product colour	Black
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
International Protection (IP) code	IP52
Product colour	Black
Power
Power source type	Battery
Charging time	4 h
Battery voltage	12 V
Number of reads per charge	80000
Input voltage	4.5 - 14 V
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3250 mAh
Weight & dimensions
Width	109 mm
Depth	68 mm
Height	166 mm
Weight	235 g
Technical details
Type	Handheld bar code reader
International Protection (IP) code	IP52
Product colour	Black
Sustainability certificates	RoHS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 100000 lx
