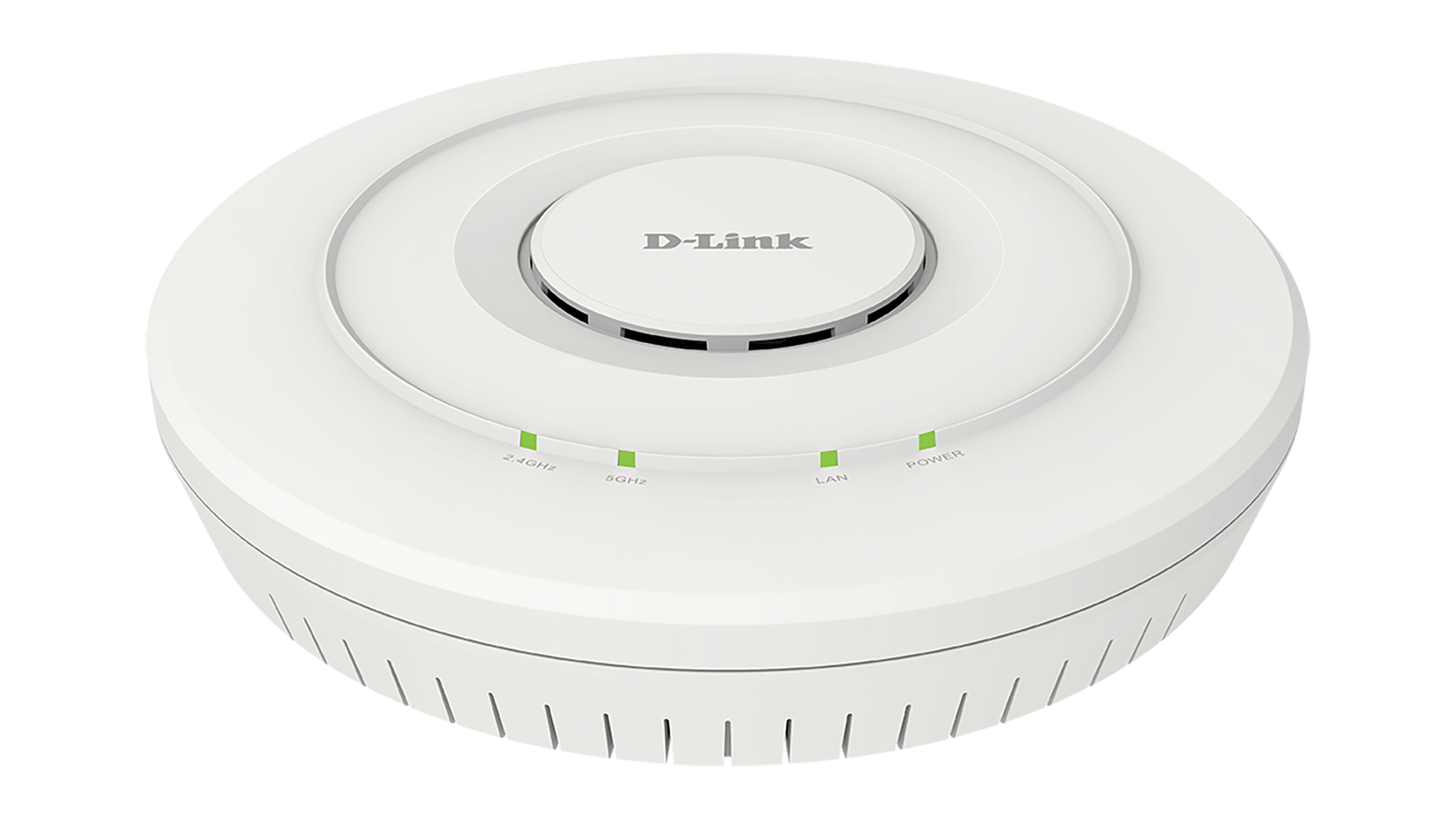

D-Link DWL-6610AP wireless access point 1200 Mbit/s Power over Ethernet (PoE)
Description
Harness the power of Wireless AC and take advantage of combined wireless speeds of up to 1200 Mbps,
perfect for high demand business applications
Enhanced Level of Performance
Experience faster and stable performance as well greater coverage with beamforming, and better
managed traffic with band steering
Unparalleled Flexibility and Scalability
Used as a standalone wireless access point, self-configuring cluster or managed centrally via a D-Link
Wireless Controller or Unified Switch
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC |
| Maximum data transfer rate | 1200 Mbit/s |
| Network | |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Security | |
| Security algorithms | AES,HTTPS,SSH,TKIP,WPA,WPA2 |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | SNMP |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 16.6 W |
| Output voltage | 12 V |
| Output current | 2 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Housing material | Plastic |
| On/off switch | Yes |
| Reset button | Yes |
| Certification | CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC |
| Antenna | |
| Antenna gain level (max) | 6.5 dBi |
| Technical details | |
| Reset button | Yes |
| Shipping (inner) case width | 34.3 cm |
| Shipping (inner) case net weight | 6.39 kg |
| Shipping (inner) case length | 56.5 cm |
| Shipping (inner) case height | 27.5 cm |
| Shipping (inner) case gross weight | 7.3 kg |
| Quantity per shipping (inner) case | 6 pc(s) |
| Quantity per pallet (sea) | 252 pc(s) |
| Quantity per pallet (air) | 144 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 2.06 m |
| Pallet height (air) | 123.5 cm |
| Pallet gross weight (sea) | 332.5 kg |
| Pallet gross weight (air) | 200.6 kg |
| Number of cartons per pallet (sea) | 42 |
| Number of cartons per pallet (air) | 24 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Weight & dimensions | |
| Width | 158.8 mm |
| Depth | 158.8 mm |
| Weight | 500 g |
| Height | 69.4 mm |
| Package width | 243 mm |
| Package depth | 235 mm |
| Package height | 90 mm |
| Package weight | 1.06 kg |
| Packaging data | |
| Package width | 243 mm |
| Package depth | 235 mm |
| Package height | 90 mm |
| Package weight | 1.06 kg |
Specifications
UNSPSC Code
43222640
Brand
D-Link
Categories
Networking
Category
Wireless Access Points
