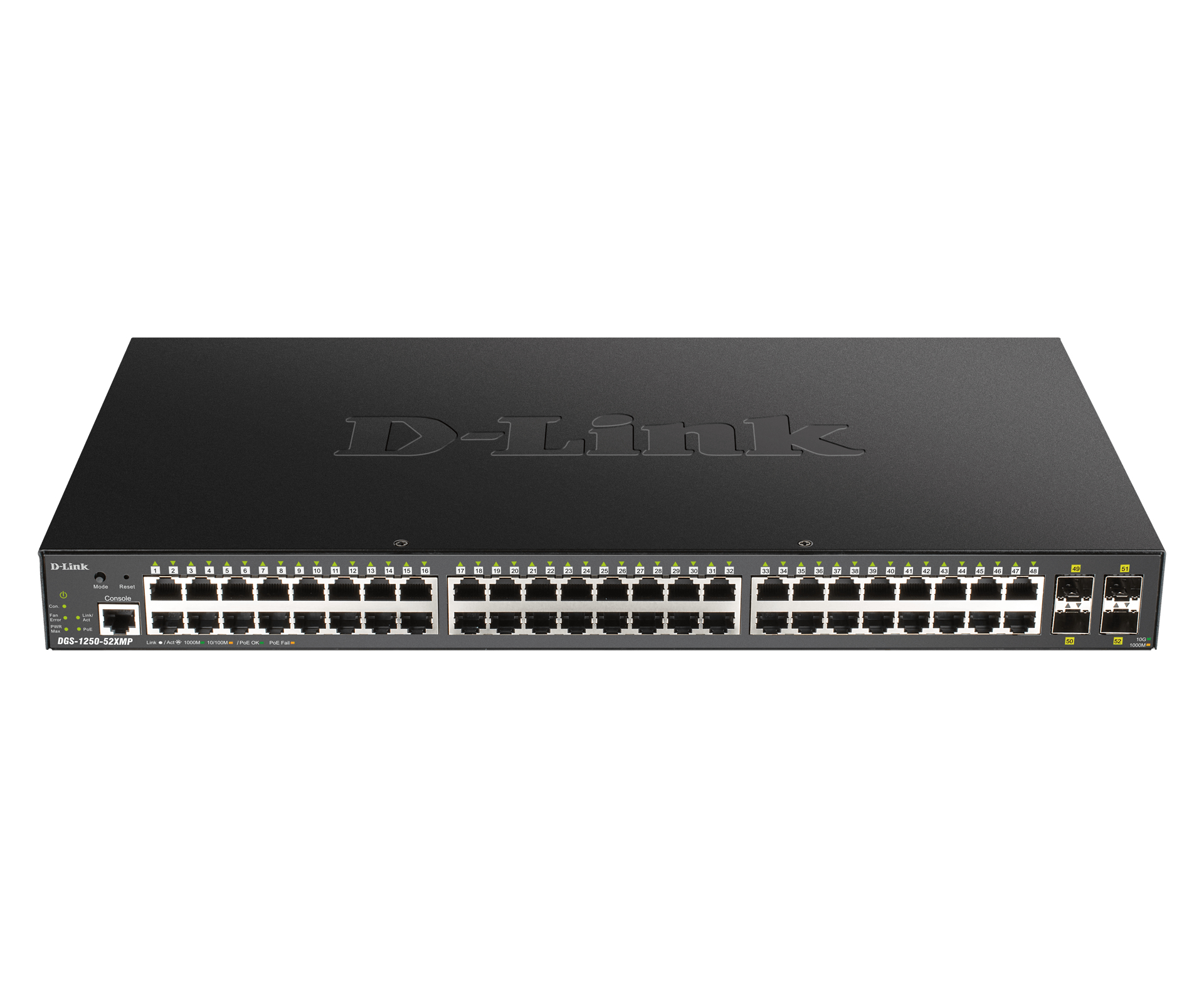

D-Link DGS-1250-52XMP network switch Managed L3 None Black Power over Ethernet (PoE)
Description
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
High PoE Budget (370W)
The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All PoE models support the IEEE 802.3af and 802.3at standards.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Voice VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 12000 |
| Number of static routes | 124 |
| Packet buffer memory | 16 MB |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 130.95 Mpps |
| Performance | |
| Packet buffer memory | 16 MB |
| Noise level | 51.2 dB |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 309053.1 h |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Technical details | |
| Product colour | Black |
| Noise level | 51.2 dB |
| Mean time between failures (MTBF) | 309053.1 h |
| Shipping (inner) case width | 47.8 cm |
| Shipping (inner) case net weight | 22.9 kg |
| Shipping (inner) case length | 58.5 cm |
| Shipping (inner) case height | 42.8 cm |
| Quantity per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 27.4 kg |
| Quantity per pallet (sea) | 80 pc(s) |
| Quantity per pallet (air) | 80 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 184.7 cm |
| Pallet height (air) | 184.7 cm |
| Pallet gross weight (sea) | 456.1 kg |
| Pallet gross weight (air) | 456.1 kg |
| Number of cartons per pallet (sea) | 16 |
| Number of cartons per pallet (air) | 16 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | None |
| Console port | RJ-45 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Access Control List (ACL) rules | 768 |
| Security algorithms | EAP,LEAP,PEAP,SSH,TTLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client,DHCP server,DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Electromagnetic compatibility | CE A, VCCI A, FCC A, IC, BSMI |
| Certification | CB, UL, BSMI, CCC |
| Memory | |
| Packet buffer memory | 16 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | CE A, VCCI A, FCC A, IC, BSMI |
| Certification | CB, UL, BSMI, CCC |
| Indication | |
| LED indicators | Activity, Link, Power, Speed |
| Power | |
| Power consumption (max) | 467.3 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1512.676 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 3.85 kg |
| Packaging data | |
| Package width | 393 mm |
| Package depth | 563 mm |
| Package height | 89 mm |
| Package weight | 5.17 kg |
Specifications
UNSPSC Code
43222612
Basic switching RJ-45 Ethernet ports quantity
46 to 48
Basic switching RJ-45 Ethernet ports type
None
Brand
D-Link
Categories
Networking
Category
Network Switches
Power over Ethernet (PoE)
Y
Rack mounting
Y
Switch Type
Managed
