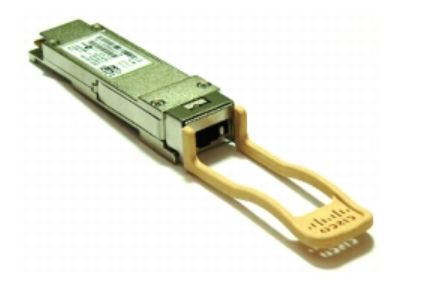

Cisco QSFP-40G-SR-BD= network transceiver module Fiber optic 40000 Mbit/s 850 nm
Description
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP |
| Technical details | |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Performance | |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | BX,SR |
| Features | |
| Hot-Plug support | Yes |
| Certification | MSA |
| Power | |
| Power consumption (typical) | 3.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | MSA |
| Packaging content | |
| Number of products included | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
Cisco
Categories
Networking
Category
Network Transceiver Modules
Interface type
QSFP
Maximum Data Transfer Rate
40000 Mbit/s
