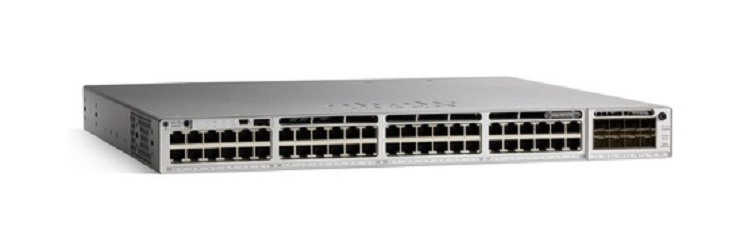

Cisco Catalyst C9300-48UXM-A network switch Managed L2/L3 10G Ethernet (100/1000/10000) Grey 1U Power over Ethernet (PoE)

Category Network Switches
C9300-48UXM-A
Own Brand

Cisco Catalyst C9300-48UXM-A network switch Managed L2/L3 10G Ethernet (100/1000/10000) Grey 1U Power over Ethernet (PoE)

1 Location: 15 In Stock
Product Code: C9300-48UXM-A
Category Network Switches

Description

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Management features
Multicast supportYes
ARP inspectionYes
Switch typeManaged
Quality of Service (QoS) supportYes
Switch layerL2/L3
Network
IPv6 multicast entries16000
IPv4 multicast entries32000
Cable types supportedCat5e,Cat6,Cat6a
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Number of VLANs4000
Flow control supportYes
Broadcast storm controlYes
10G supportYes
Multiprotocol Label Switching (MPLS)Yes
Zero Touch Provisioning (ZTP)Yes
Virtual LAN featuresPrivate VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresPrivate VLAN
Data transmission
Number of VLANs4000
Jumbo frames9198
Packet buffer memory16 MB
MAC address table32000 entries
Switching capacity580 Gbit/s
Jumbo frames supportYes
Forwarding rate431.54 Mpps
Performance
Packet buffer memory16 MB
StackableYes
Plug and PlayYes
Mean time between failures (MTBF)202160 h
Flash memory16000 MB
Firmware upgradeableYes
Built-in processorYes
Technical details
Form factor1U
Product colourGrey
StackableYes
Mean time between failures (MTBF)202160 h
Firmware upgradeableYes
Rack mountingYes
Built-in processorYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
USB 2.0 ports quantity1
Security
Security algorithms128-bit AES,256-bit AES
Access Control List (ACL)Yes
DHCP featuresDHCP snooping
Multicast features
Multicast supportYes
IPv6 multicast entries16000
IPv4 multicast entries32000
Protocols
Virtual Router Redundancy Protocol (VRRP)Yes
Routing protocolsBGP,EIGRP,HSRP,IS-IS,OSPF,RIP
Certificates
SafetyUL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Electromagnetic compatibility47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
Memory
Packet buffer memory16 MB
Flash memory16000 MB
Design
SafetyUL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Form factor1U
Product colourGrey
StackableYes
LED indicatorsYes
Electromagnetic compatibility47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
Rack mountingYes
Indication
LED indicatorsYes
Power
AC input voltage100 - 240 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget490 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)5 - 90%
Operating altitude0 - 3000 m
Weight & dimensions
Width445 mm
Depth470 mm
Height44 mm
Weight9.34 kg
UNSPSC Code

43222612

Basic switching RJ-45 Ethernet ports quantity

46 to 48

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Brand

Cisco

Categories

Networking

Category

Network Switches

Power over Ethernet (PoE)

Y

Rack mounting

Y

Stackable

Y

Switch Type

Managed

Starting from
€12,267.64 Pack of 1
/
incl. VAT €15,089.20
- +
