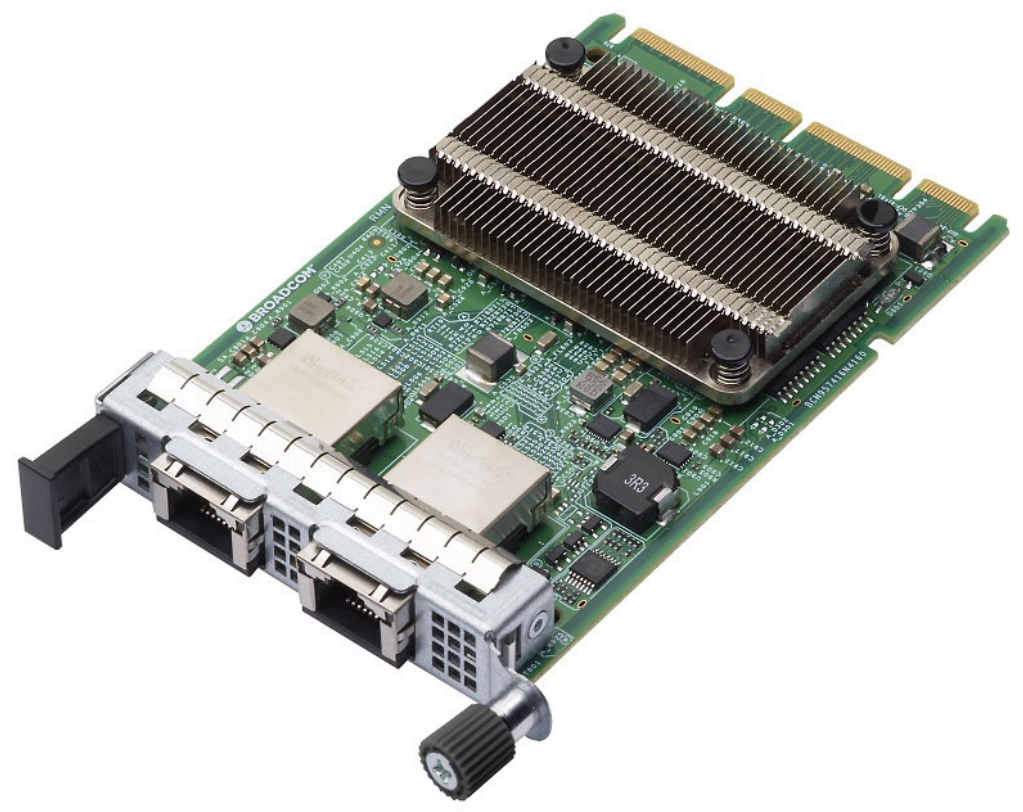

Broadcom NetXtreme N210GBT 2 x 10GBASE-T OCP 3.0 Ethernet 10000 Mbit/s Internal

Category Networking Cards
BCM957416N4160C
Own Brand

Broadcom NetXtreme N210GBT 2 x 10GBASE-T OCP 3.0 Ethernet 10000 Mbit/s Internal

1 Location: 145 In Stock
Product Code: BCM957416N4160C
Category Networking Cards

Description

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series N210TP 2x10GBASE-T OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics. The N210TP 2x10GBASE-T OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency. Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks. With its market-leading hardware acceleration technologies, the NetXtreme-E Series N210TP 2x10GBASE-T OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Ports & interfaces
InternalYes
PCI version3.0
Ethernet LAN (RJ-45) ports2
InterfaceEthernet
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Maximum data transfer rate10000 Mbit/s
Technical details
Product colourGreen
Indication
LED indicatorsActivity, Link
Network
Ethernet interface type10 Gigabit Ethernet
Ethernet LANYes
Cabling technology10GBase-T
LAN controllerBroadcom 57416
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Maximum data transfer rate10000 Mbit/s
Design
Product colourGreen
InternalYes
LED indicatorsActivity, Link
Power
Power consumption (typical)14.6 W
Weight & dimensions
Package weight110 g
Packaging data
Package weight110 g
UNSPSC Code

43201404

Brand

Broadcom

Categories

System Components

Category

Networking Cards

Connectivity technology

Wired

Host interface

PCI Express

Interface

Ethernet

Internal

Y

Starting from
€538.89 Pack of 1
/
incl. VAT €662.83
- +
