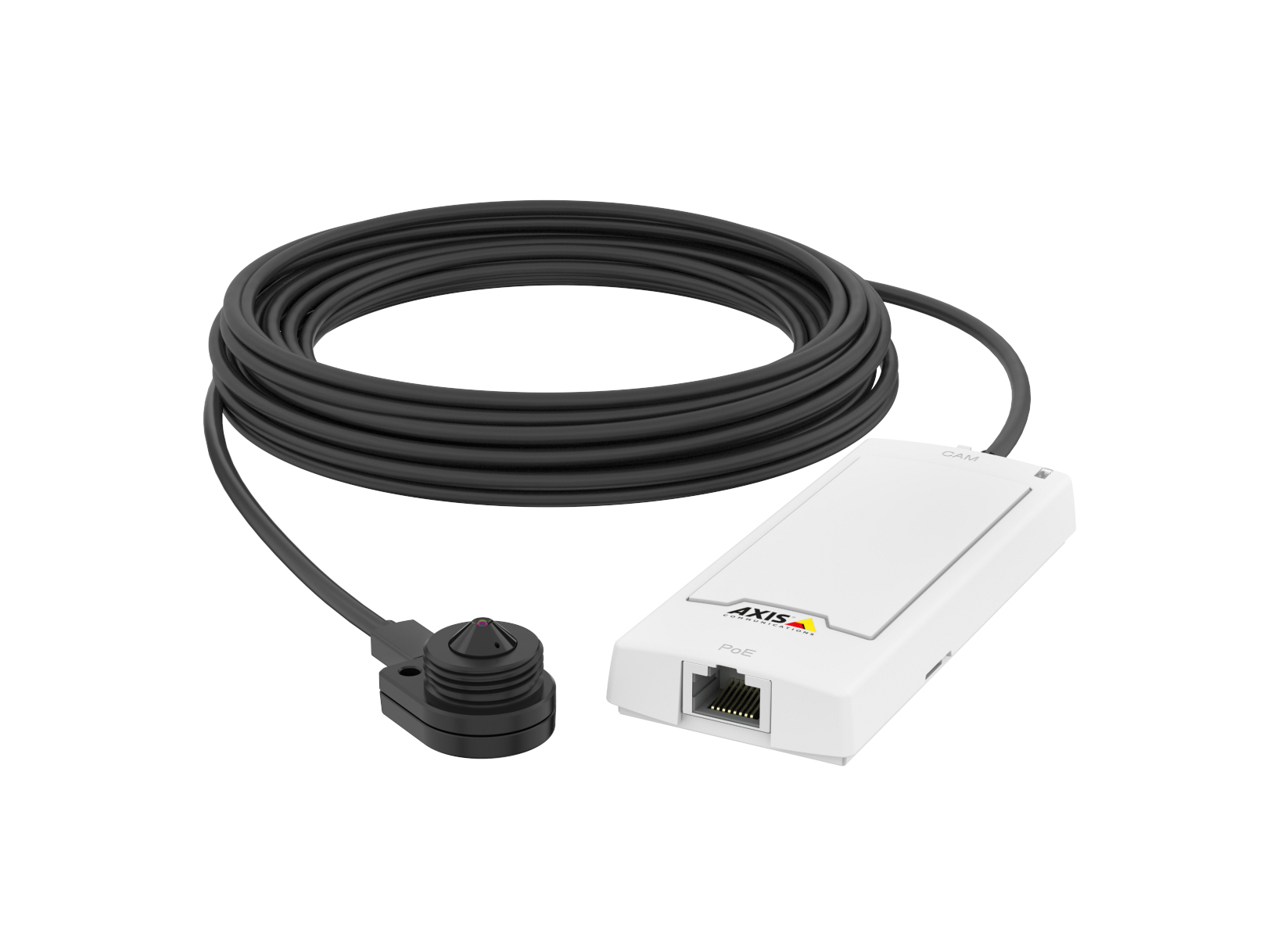

Axis P1265 IP security camera Covert 1920 x 1080 pixels
Description
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | 55032 B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B B, VCCI B, RCM AS/NZS CISPR 32, ICES-003 B, KCC KN32 B, KN35, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27 |
| Design | |
| Form factor | Covert |
| Product colour | White |
| Housing material | Aluminium, Plastic, Steel |
| Camera | |
| Minimum illumination | 0.27 lx |
| Viewing angle, horizontal | 91° |
| Viewing angle, vertical | 45° |
| Camera shutter speed | 1/32500 - 1/25 (50 Hz), 1/32500 - 1/30 (60 Hz) |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Maximum aperture number | 2.5 |
| Fixed focal length | 3.7 mm |
| Video | |
| Image quality adjustment | Brightness, Colour depth, Contrast, Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR),Variable Bit Rate (VBR) |
| Video compression formats | H.264,M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Video streaming | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | HTTPS,SNMP,SNMPv3,SSH,SSL/TLS |
| Password protection type | User |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 4 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 2.5 W |
| Certificates | |
| Certification | 55032 B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B B, VCCI B, RCM AS/NZS CISPR 32, ICES-003 B, KCC KN32 B, KN35, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Packaging content | |
| Number of cameras | 1 |
| User guide | Yes |
| Other features | |
| Video compression formats | H.264,M-JPEG |
Specifications
UNSPSC Code
46171610
Bluetooth
N
Brand
Axis
Categories
Surveillance Systems
Category
Security Cameras
Connectivity technology
Wired
Ethernet LAN
Y
Form Factor
covert
Number of cameras
up to 1
Power source type
PoE
Product Colour
White
Sensor type
CMOS
Type
IP security camera
Wi-Fi
N
