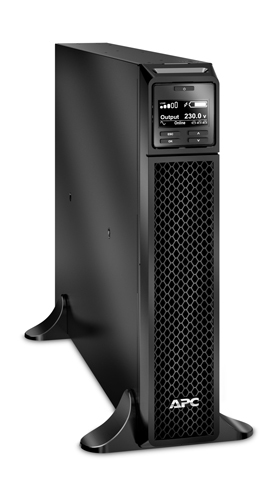

APC SRT3000XLW-IEC uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)
Description
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 92.4% |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
| Cable length | 2.44 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Web-based management | Yes |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 92.4% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 505 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH |
| Cable length | 2.44 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Packaging data | |
| Packaging content | Removable support feet |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Software CD | Yes |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 36.7 kg |
| Management features | |
| Web-based management | Yes |
| Weight & dimensions | |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Weight | 31.3 kg |
| Width | 85 mm |
| Package weight | 36.7 kg |
| Height | 432 mm |
| Depth | 635 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Certificates | |
| Certification | CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH |
| Other features | |
| Packaging content | Removable support feet |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Software CD | Yes |
| Packaging content | Removable support feet |
Specifications
UNSPSC Code
39121011
Brand
APC
Categories
Batteries & Electrical Accessories
Category
Uninterruptible Power Supplies (UPSs)
Form Factor
Tower
Output Power
2000W to 3000W
Output Power Capacity
1200VA to 4000VA
Product Colour
Black
UPS topology
Double-conversion (Online)
APC SRT3000XLW-IEC uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)
