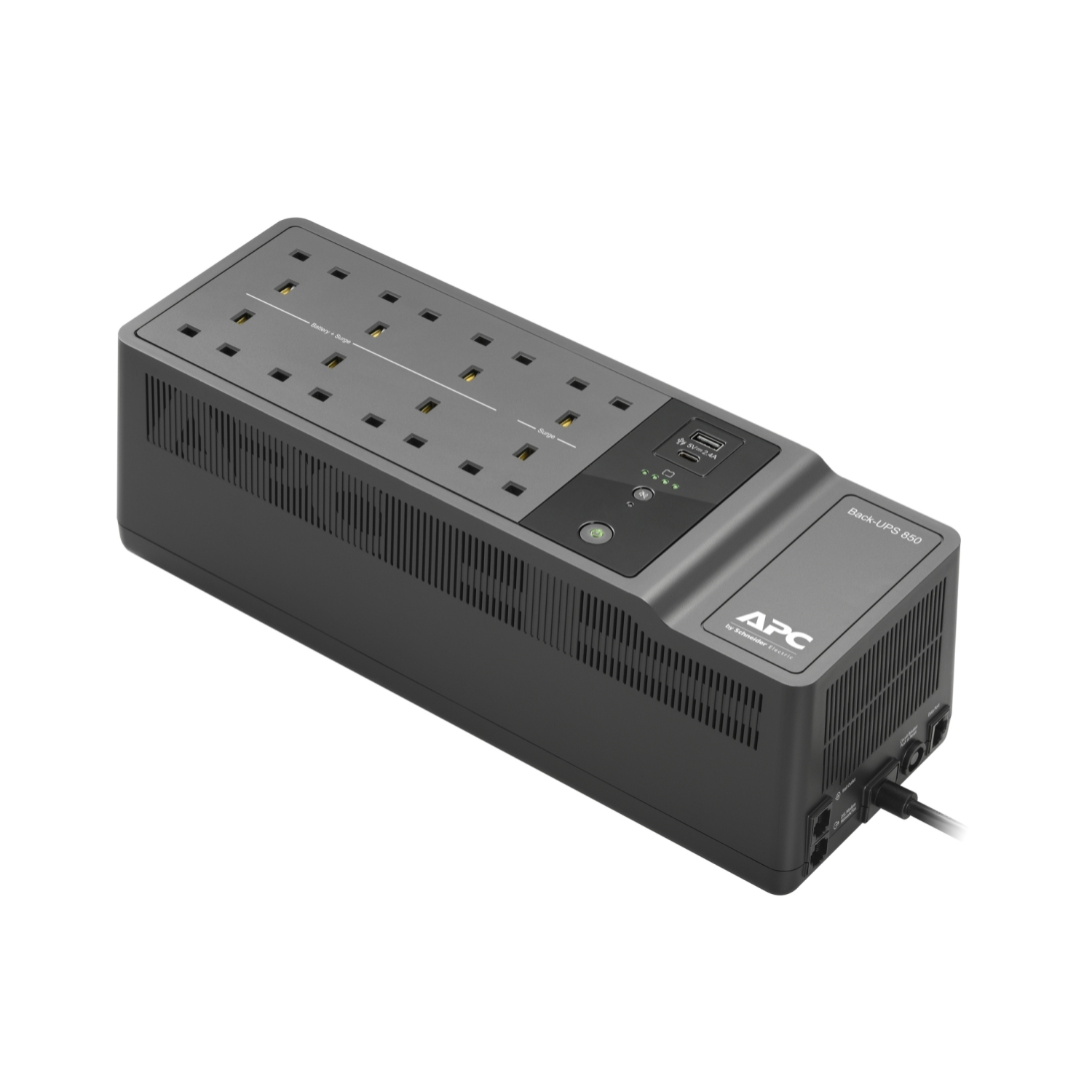

APC BE850G2-UK uninterruptible power supply (UPS) Standby (Offline) 850 VA 520 W
Description
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Cold-start capable
Provides temporary battery power when the utility power is out.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.
USB charging ports
Simultaneously charge mobile devices, including smartphones and tablets.
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
| Power | |
|---|---|
| Output power | 520 W |
| Input operation voltage (min) | 180 V |
| Input operation voltage (max) | 266 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 310 J |
| Maximum current | 6 A |
| Efficiency | 80% |
| Output power capacity | 850 VA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port type | USB Type-C |
| Performance | |
| Audible alarm modes | Alarm when on battery, Overload alarm |
| UPS topology | Standby (Offline) |
| Waveform | Sine |
| LED indicators | Yes |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL) |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Overload alarm |
| UPS topology | Standby (Offline) |
| Waveform | Sine |
| Output power | 520 W |
| Input operation voltage (min) | 180 V |
| Input operation voltage (max) | 266 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 310 J |
| Maximum current | 6 A |
| Efficiency | 80% |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL) |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 850 VA |
| Input frequency | 47/63 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 16 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EAC |
| Cable length | 1.83 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 4500 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 4.5 kg |
| Width | 130 mm |
| Height | 120 mm |
| Depth | 365 mm |
| Package width | 186 mm |
| Package depth | 441 mm |
| Package height | 190 mm |
| Package weight | 5 kg |
| Packaging data | |
| Manual | Yes |
| Package width | 186 mm |
| Package depth | 441 mm |
| Package height | 190 mm |
| Package weight | 5 kg |
| Logistics data | |
| Master (outer) case weight | 16 kg |
| Certificates | |
| Certification | CE, EAC |
| Packaging content | |
| Manual | Yes |
